Summary:

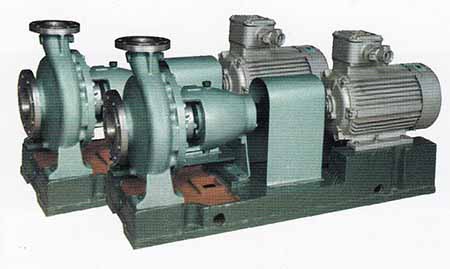

Standard CZ series chemical pump is horizontal, single stage, single suction centrifugal pump; its size and performance in line with DIN24256 / manufacturing standards.
The performance range of the standard CZ series chemical pump includes all the performance standards of IH series, the efficiency and the cavitation performance of the pump is more than the IH type pump, which can be used for the single machine with the IH pump.
Use
Low temperature or high temperature liquid, neutral or corrosive liquid, especially suitable for liquid containing solid particles:
Chemical and petrochemical industries
Paper mill and pulp industry
Coating industry (skim, phosphating, electrophoresis, etc.)
Performance
Flow (Q) (according to the speed, see the second page performance map) up to 2000m3/h
Head (H) up to 160m
Working pressure (P) 2.5MPa
Operating temperature (T) - 80 - 300
The characteristic curve is flat, the cavitation value is low, the efficiency is high, and when the load is under the load, these characteristics are also maintained.
|
